The Model 601 Fiber Optic Measurement
System (FOMS) supports RJC Fiber Optic Pressure sensors. This FOMS has many applications,
including product development support, laboratory studies, production support, and clinical measurements (the customer must first
obtain regulatory approval). The Model 601 contains an optoelectronic circuit board assembly, a graphic color display, alarm functions,
and other related features:
- Dimensions: 8”W x 6.75”H x 2”D without stand; 3.5”D with stand. Pole mount is available
- Operating temperature range: 15 to 35°C
- Display: Graphic color LCD 5” diagonal, 800x480 pixels
- Sensor calibration data: RFID

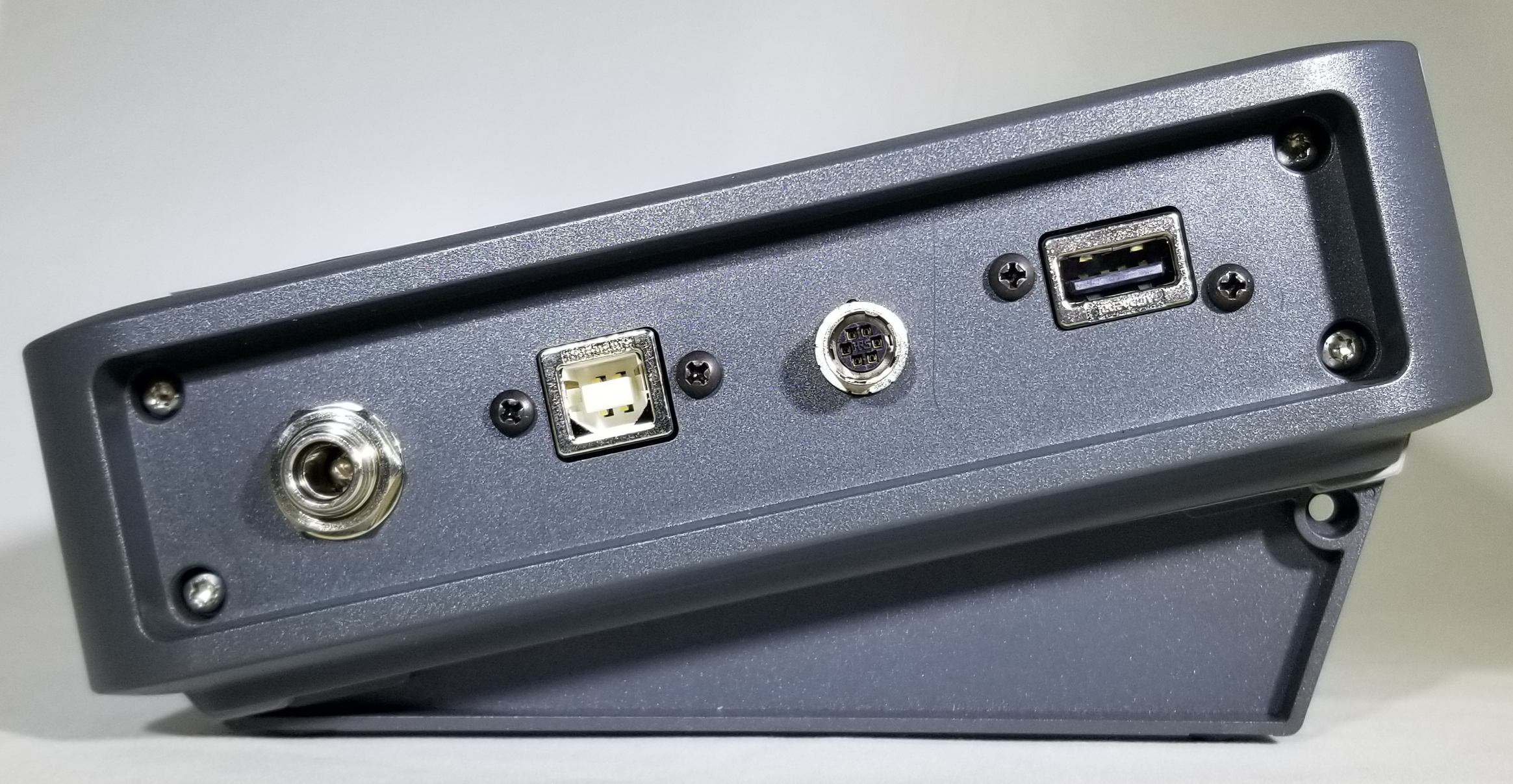

- Outputs: Simulated strain gauge, High level analog output (10mV/mmHg), USB, Thumb drive data logging, Patient monitor interface
- Output frequency response: DC to 100Hz @ 1,000 samples/second
