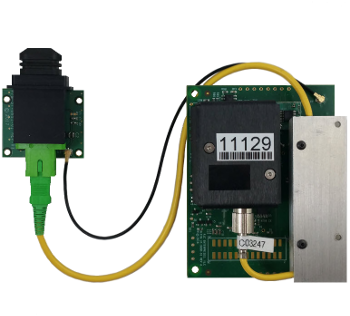

The Model 500 Fiber Optic Measurement Assembly (FOMA) supports RJC Fiber Optic Pressure sensors. This FOMA becomes a sub assembly in the customer designed medical device, and requires customer supplied power, controls, alarms, and sensor data outputs/displays. The Tethered Module contains a mating optical connector for the sensor, and an RFID antenna for reading sensor calibration information. The Tethered Module can be configured to meet customer needs.

• Dimensions:
  • FOMA: 2.68 x 3.50 x 0.89 inches
  • Tethered Module: 1.50 x 1.33 x 0.81 inches
• Operating temperature range: 15 to 38°C
• Sensor calibration data: RFID
• Output: Logic Level RS-232
• Output frequency: DC to 100 Hz @ 1000 samples/second (other bandwidths and sample rates available)
• Power required: 12 VDC @ 215 mA
  (2.5 amp startup)

Click HERE to see Model 500 User Instructions.

(Released 2017)
